Home>oubao products>Magnetic Core Drill

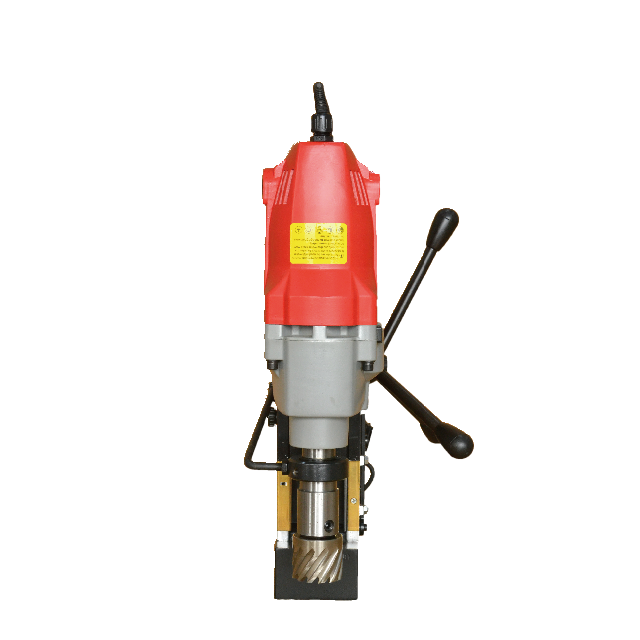

Magnetic Core Drill
Hosts gearbox fixed with high accuracy
All die-cast magnesium alloy frame in light weight
Built-in cooling system
High magnet force
TECHNICAL PARAMETER
 Core drill dia(mm) Rated Voltage(v) Rated Frequency(Hz) Rated Input Power(w) Max attraction(N)
 No-load Speed(rpm) Cutting depth(mm)
 Stroke(mm)
 Net/Gross Weight(kgs) Packing Weight(cm)
OB-5000 50
 110/220~ 50-60 1650
 15500
 570 40
 190
 10.25/15 44.5*16.5*34.5
OB-5000E 50
 110/220~ 50-60 1650 15500
 100-570 40
 190
 10.25/15 44.5*16.5*34.5
OB-8000
 80
 110/220~
 50-60
 1950
 16700
 510
 40 220
 18/20
 44.5*16.5*34.5
OB-8000E
 80
 110/220~
 50-60
 1950
 16700
 100-510
 40 220
 18/20
 44.5*16.5*34.5
